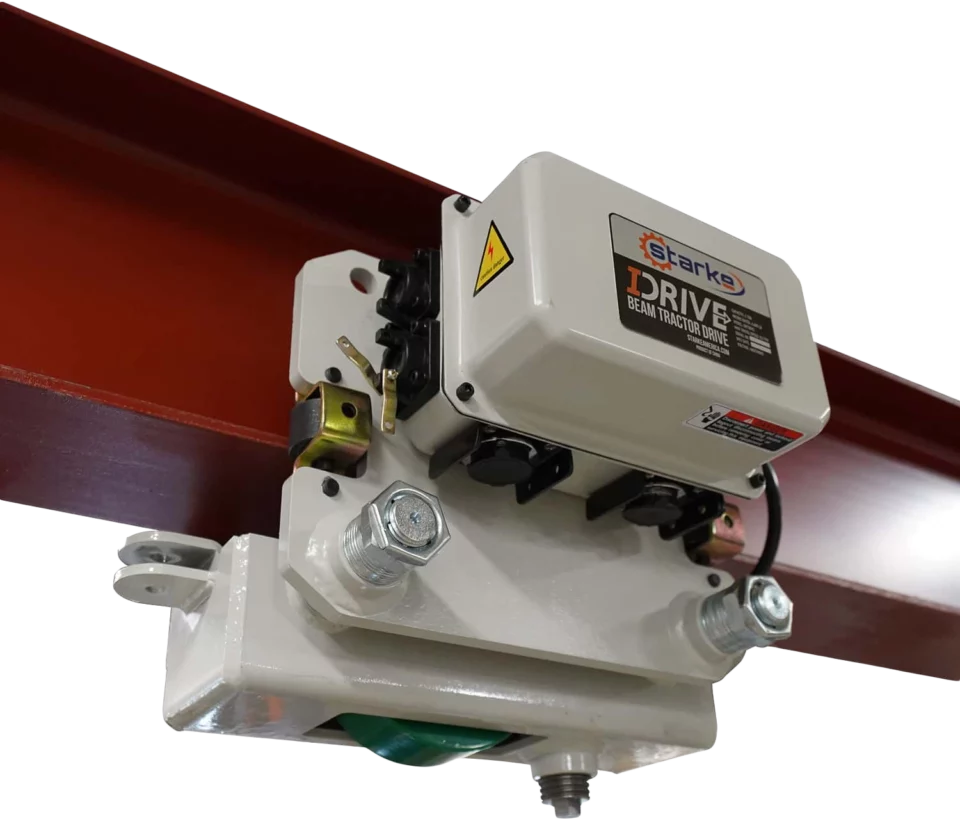

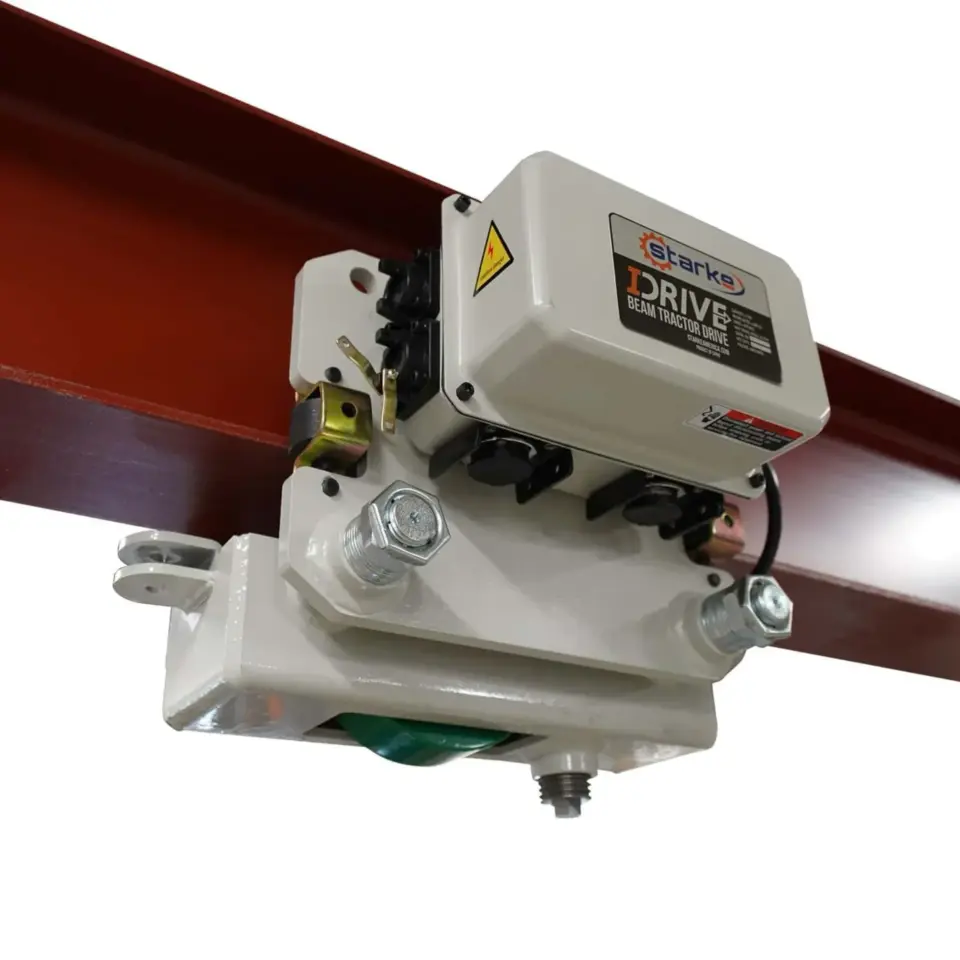

IDrive Beam Tractor
Motorize your hoist setups

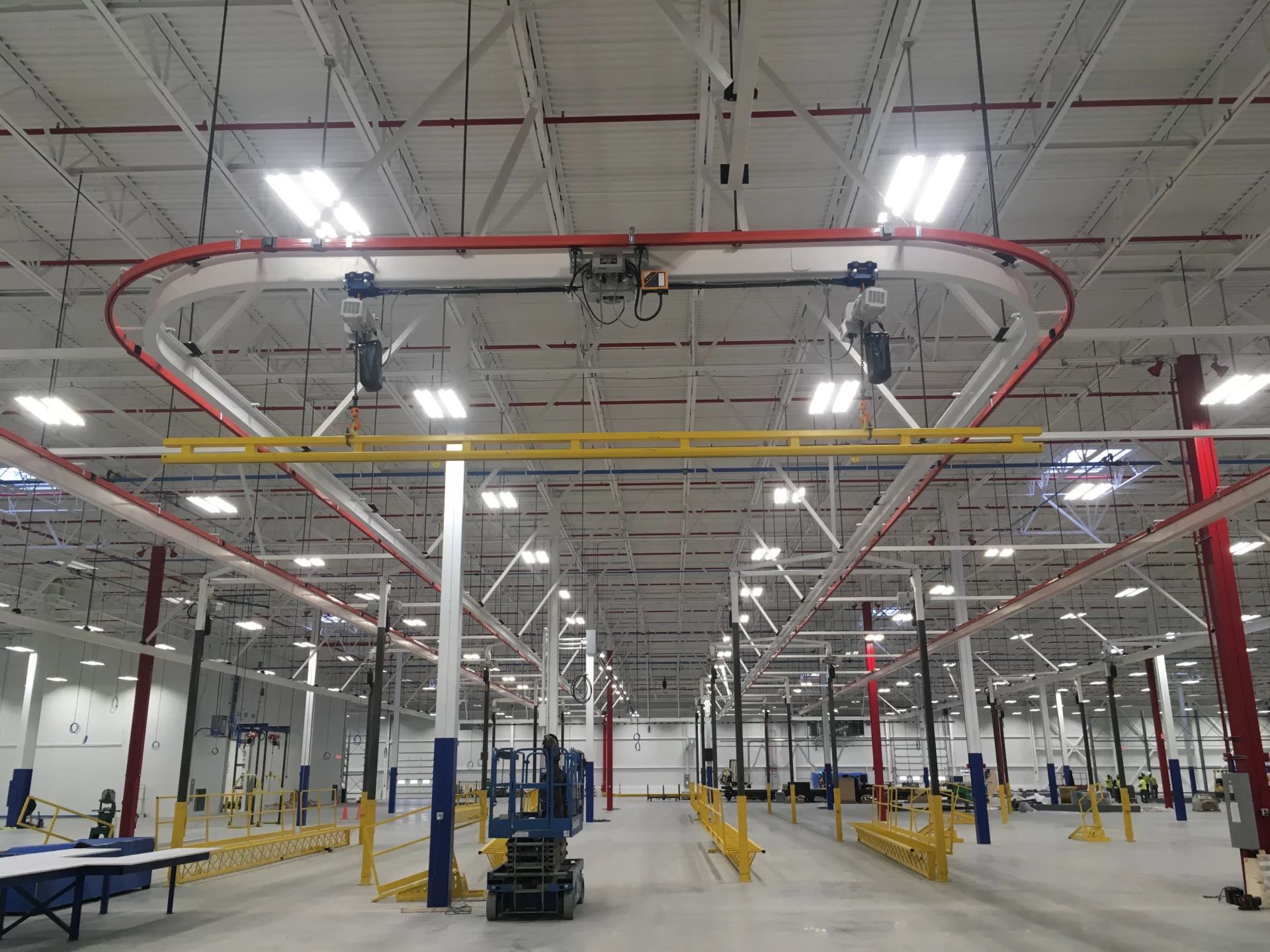

Motorize any manual system of the past. Add to old manual end trucks and create a motorize bridge crane, or simply tow a hoist.
Features
Marketing headline
The lede paragraph builds on the marketing headline.
VFD control
The variable frequency drive can regulate the motor’s speed and torque, enabling smooth acceleration and deceleration with precise control.
Support Up 12" beams
With the flange width adder, you can connect safely to beams up to 12″. Standard max width (without the adder) is under 9″.
Poly coated drive & tensioner wheel
The drive wheels and tensioner wheels are poly coated to provide maximum traction.
Tensioning system
Spring adjustment of the tensioner allows for maintained performance across the life of the unit.
Specs
Marketing headline
The lede paragraph builds on the marketing headline.
- Capacity
- 3 ton
- Flange
Standard
- 4″ – 8″
With flange width adder
- 8″ – 12″
- Lift speed
- Travel speed
- 82/14 FPM
- Motor
- 1 HP
- Voltage
- 460v 3 Phase (standard)
- 208/230v 3-Phase (optional upgrade)
- 230v Single Phase (optional upgrade)
Amps
- 460v 3 Phase: 2.2 Amp
- 208/230v 3 Phase: 4.4 Amp
- 230v Single Phase: 8.8 Amp
Components
Marketing headline
The lede paragraph builds on the marketing headline.
What’s included (in this kit – dev addition)
Marketing headline
The lede paragraph builds on the marketing headline.
Control options
Marketing headline
The lede paragraph builds on the marketing headline.
Place your first order
Marketing headline
The lede paragraph builds on the marketing headline. It is usually 1-2 sentences.
Step headline
The step description is typically 1-2 sentences.
Step headline
The step description is typically 1-2 sentences.
Step headline
The step description is typically 1-2 sentences.
Our partners
Marketing headline
The lede paragraph builds on the marketing headline. It is usually 1-2 sentences.
Reviews
Marketing headline
The lede paragraph builds on the marketing headline.
It has been a pleasure to work with Paul and the team at Starke. They embody the same dedication to outstanding customer service and attention to detail that we do here at Zephyr Cranes. They have always been super responsive, solutions focused, and best of all they deliver a great product. We look forward to deepening our relationship with Starke America and helping customers solve their Overhead Lifting challenges using Starke Products.
Resources
Marketing headline
The lede paragraph builds on the marketing headline.
I-Drive Beam Tractor Drive Manual
August 1, 2026
Manual
Starke I-Drive Beam Tractor Dimensions
August 1, 2026
