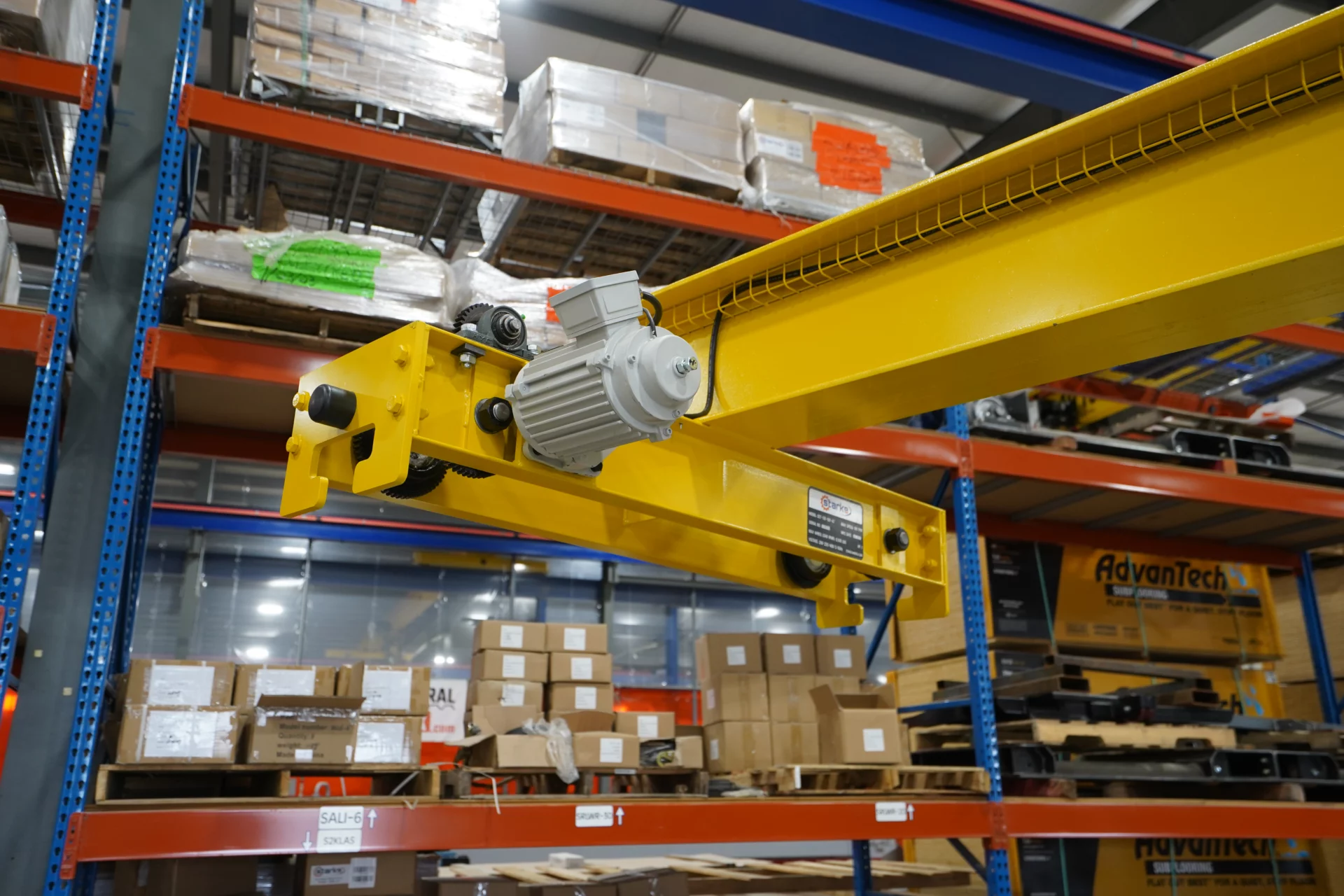

SCT Top-Runner Motorized End Trucks
Combining simplicity with maximized headroom
Experience quick and easy install like no other end truck by eliminating the need for ASCE rail. The SCT rides smoothly on WF runway beams.
Features
Marketing headline
The lede paragraph builds on the marketing headline.
Motors
460/230VAC direct drive induction motor with grease filled gear reducer
Brakes
VDC brake coil with rectifier
Bearings
10,000 hr lifespan
Specs
Marketing headline
The lede paragraph builds on the marketing headline.
- Capacity
- SCT-110-100: 1-2 ton / 5,100 lbs. max wheel load
- SCT-130-100: 2-3 ton / 8,500 lbs. max wheel load
- Flange
- End user to specify actual flange width of runway beam.
- Standard available width range: 4″ – 10″
- Lift speed
- Travel speed
- 100 FPM
- Motor
- (2) – 0.5 HP (1-2 ton)
- (2) – 1 HP (2-3 ton)
- Voltage
- 230/460v 3 Phase
Amps
- 3.6/1.8 Amp (0.5 HP)
- 5.2/2.6 Amp (1 HP)
- Classification
H4 duty rating
High volume of heavy loads, frequently near rated load capacity. Total running time not over 50% of the work period. Manual or automatic cycling operations of lighter loads with capacity loads handled infrequently such as in heat treating and plating operations, with total running time frequently at 50% of the work period.
Components
Marketing headline
The lede paragraph builds on the marketing headline.
What’s included (in this kit – dev addition)
Marketing headline
The lede paragraph builds on the marketing headline.
Control options
Marketing headline
The lede paragraph builds on the marketing headline.
Place your first order
Marketing headline
The lede paragraph builds on the marketing headline. It is usually 1-2 sentences.
Step headline
The step description is typically 1-2 sentences.
Step headline
The step description is typically 1-2 sentences.
Step headline
The step description is typically 1-2 sentences.
Our partners
Marketing headline
The lede paragraph builds on the marketing headline. It is usually 1-2 sentences.
Reviews
Marketing headline
The lede paragraph builds on the marketing headline.
It has been a pleasure to work with Paul and the team at Starke. They embody the same dedication to outstanding customer service and attention to detail that we do here at Zephyr Cranes. They have always been super responsive, solutions focused, and best of all they deliver a great product. We look forward to deepening our relationship with Starke America and helping customers solve their Overhead Lifting challenges using Starke Products.
Resources
Marketing headline
The lede paragraph builds on the marketing headline.
SCT Top-Runner End Truck Manual
August 1, 2026
Manual
