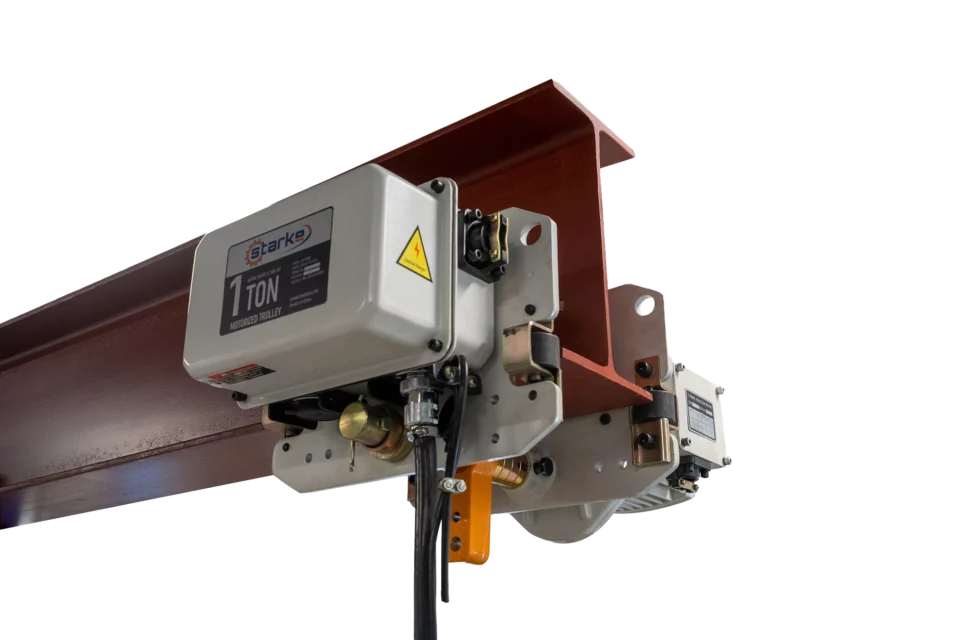

SMT Series Motorized Trolley

A two speed trolley designed for adaptability

Choose a custom speed for your SMT trolley. While the high/low set points are 82/14 FPM by default, you can choose custom points that work best for your workspace.

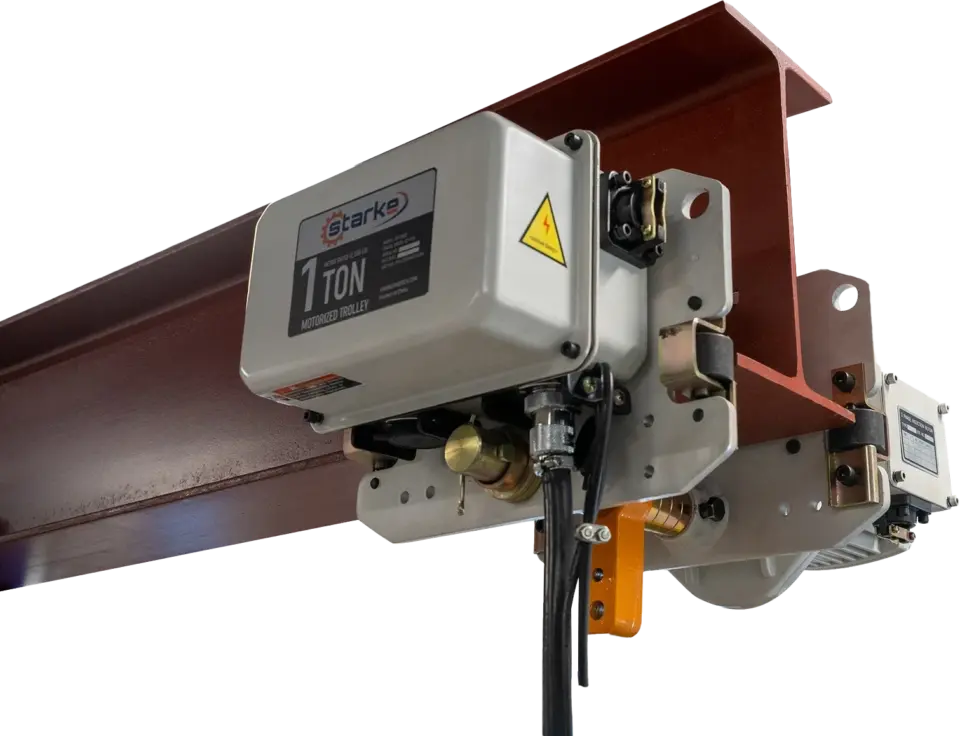

Starke Variable Speed Motorized Trolley

Features

Reasons to choose Starke

You have other options but here's why crane builders choose Starke for their hoist products.

  • Smooth transition

    The variable frequency drive regulates the motor's speed and torque, enabling smooth acceleration and deceleration for smoothly and safely moving loads.

  • True variable speed

    The Danfoss VFD allows true variable speed control when paired with a capable remote or pendant. By default this trolley is set up to work with a 2 speed control.

  • Easy mounting

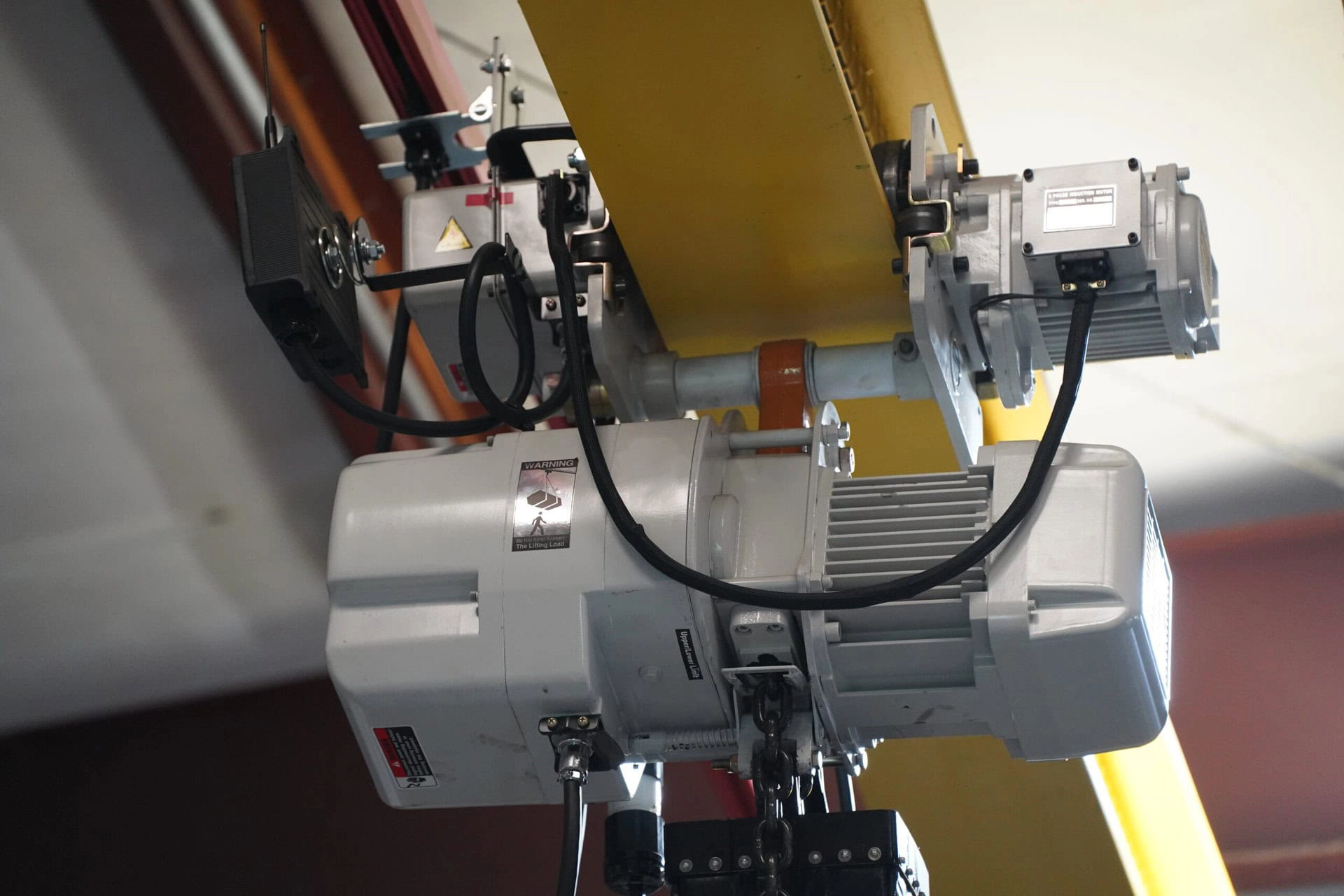

    The SMT can connect to a hoist with a lug (compatible with Starke hoists) or clevis (compatible with most hoist brands and models).

  • Fits up to 16" beams

    With the flange width adder, you can connect safely to beams up to 16". Standard max width (without the adder) is under 9".

Specs

The details that matter

Everything you need to size it to the job. If the option you need isn't listed, it's probably available, so ask.

Capacity
  • SMT10VSL: 1 Ton
  • SMT20VSL: 2 Ton
  • SMT30VSL: 3 Ton
  • SMT50VSL: 5 Ton
Flange

Standard

  • SMT10VSL: 3" - 7 3/4"
  • SMT20VSL: 4" - 9 1/4"
  • SMT30VSL: 4" - 9 1/2"
  • SMT50VSL: 4" - 10 9/16"

With flange width adder

  • All models can be upgraded to fit flanges up to 16 inches wide.
Travel speed
  • 82/14 FPM
Motor
  • SMT10VSL: 1/2 HP
  • SMT20VSL: 1/2 HP
  • SMT30VSL: 1 HP
  • SMT50VSL: 1 HP
Voltage
  • 460v 3 Phase (standard)
  • 208/230v 3 Phase (optional upgrade)
  • 230v Single Phase (optional upgrade)

Amps

  • 1/2 HP: 1.1 Amp
  • 1 HP: 2.2 Amp

Place your order

3 steps. That's it. That simple.

It starts with a no-obligation quote and ends with a crane kit (or part) on its way.

  1. Send an RFQ

    No full spec required — send what you've got, even "I need to lift this much, right here," and we'll help you nail down the voltage, I-beam, and capacity.

  2. Review the quote

    Usually back in 3–4 hrs, with real availability and an honest lead time. With Starke, you can turn around and quote your customer with confidence.

  3. Place the order

    Give the go-ahead, schedule delivery, and pay on agreed terms. Most items ship in 3–5 days, and your crane's on its way and on time.
