SMW Series Wire Rope Hoist
3–15 ton monorail wire rope hoist
The SMW Series adds modern technology on a proven wire rope hoist frame. It’s ready for all day everyday use in your manufacturing plant.
Features
Marketing headline
The lede paragraph builds on the marketing headline.
Load cell with LED display
The 3" display lets the operator know at a glance how many pounds the hoist is carrying. This adds safety and provides the ability to calculate load weights for freight companies.
Smooth operation
The Danfoss Variable Frequency Drive regulates the motor’s speed and torque, enabling smooth acceleration and deceleration for smoothly and safely lifting and moving loads.

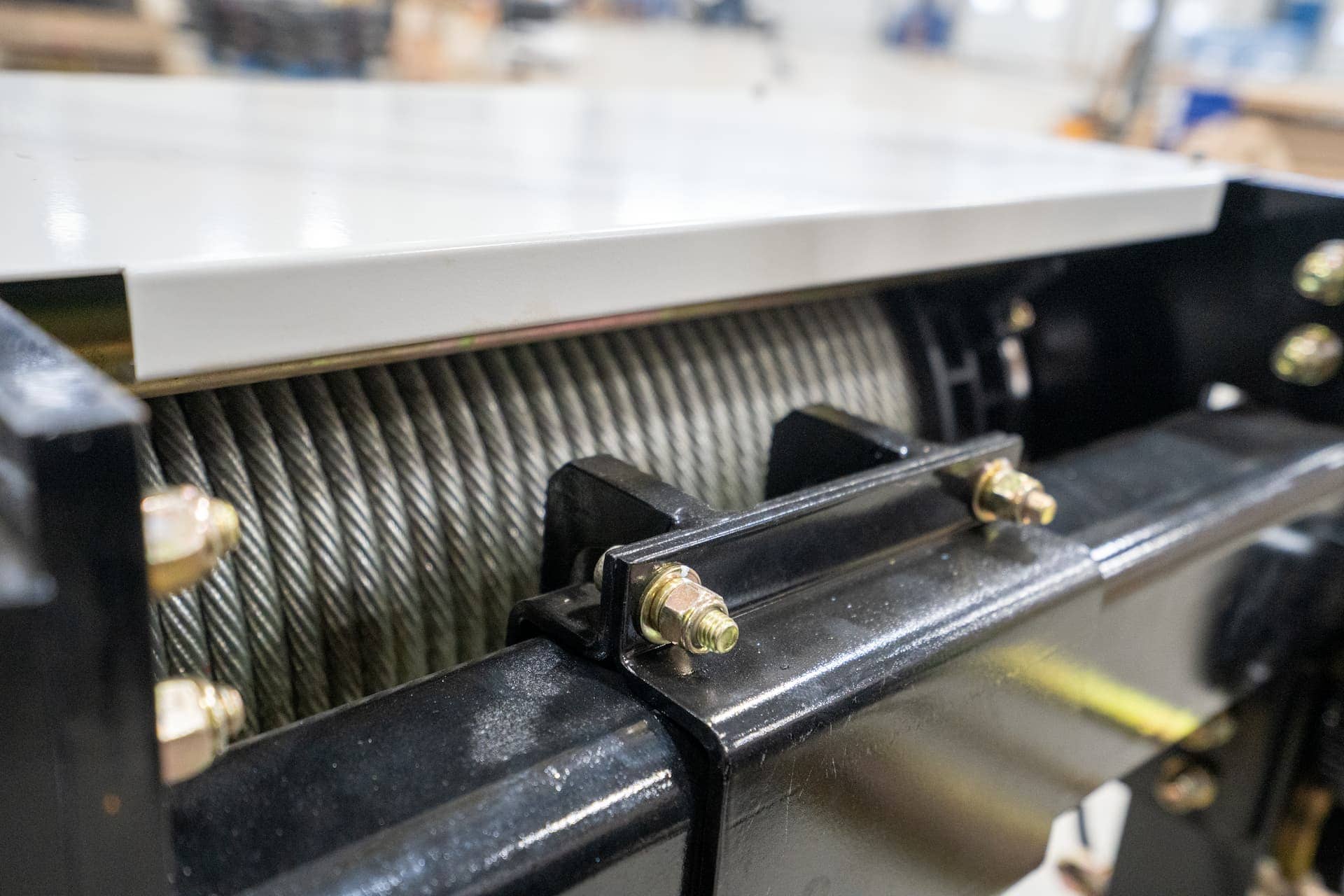

Wire rope drum guide
The rope drum is deeply grooved with stainless steel tube and a high tensile rope guide for optimum line arrangement, a greater safety factor, and a longer life.
H4 duty class
It's tried and tested for all day, everyday operation.
Fits up to 25" beams
While most WRHs require an upgrade for beam sizes of 25", the SMW Series includes it standard.
2-speed lifting motor
All hoists feature a heavy duty 2-speed lifting motor designed for long component life and ease of routine service.
Specs
Marketing headline
The lede paragraph builds on the marketing headline.
- Capacity
- SMW0324: 3 Ton
- SMW0524: 5 Ton
- SMW0721: 7.5 Ton
- SMW1021: 10 Ton
- SMW1521: 15 Ton
- Flange
- 8″ – 25″
- Lift speed
- 24/4 FPM (3 Ton, 5 Ton)
- 21/4 FPM (7.5 Ton, 10 Ton, 15 Ton)
- Travel speed
- 75/20 FPM
- Motor
- 4 HP lifting / 0.5 HP trolley (3 Ton)
- 8 HP lifting / 0.85 HP trolley (5 Ton)
- 8 HP lifting / 0.85 HP trolley (7.5 Ton)
- 15 HP lifting / 1.3 HP trolley (10 Ton)
- 16.7 HP lifting / 2 HP trolley (15 Ton)
- Voltage
- 460V 3 Phase (standard)
- 230V 3 Phase (optional upgrade for all models except 15 Ton)
- Classification
H4 duty rating
The 3 Ton to 10 ton SMW series wire rope hoists meet the ASME H4 duty rating.
H3 duty rating
The 15 Ton SMW series wire rope hoist meets the ASME H3 duty rating.
- Options
Lift
- 20′
- 30′
- 40′
Components
Marketing headline
The lede paragraph builds on the marketing headline.
What’s included (in this kit – dev addition)
Marketing headline
The lede paragraph builds on the marketing headline.
Control options
Marketing headline
The lede paragraph builds on the marketing headline.
Place your first order
Marketing headline
The lede paragraph builds on the marketing headline. It is usually 1-2 sentences.
Step headline
The step description is typically 1-2 sentences.
Step headline
The step description is typically 1-2 sentences.
Step headline
The step description is typically 1-2 sentences.
Our partners
Marketing headline
The lede paragraph builds on the marketing headline. It is usually 1-2 sentences.
Reviews
Marketing headline
The lede paragraph builds on the marketing headline.
It has been a pleasure to work with Paul and the team at Starke. They embody the same dedication to outstanding customer service and attention to detail that we do here at Zephyr Cranes. They have always been super responsive, solutions focused, and best of all they deliver a great product. We look forward to deepening our relationship with Starke America and helping customers solve their Overhead Lifting challenges using Starke Products.
Resources
Marketing headline
The lede paragraph builds on the marketing headline.
SMW Wire Rope Hoist Gen 2 Manual
August 1, 2026
Manual
SMW Series Wire Rope Hoist Dimensions
July 31, 2026
