STW Series Wire Rope Hoist

Top running 5–20 ton wire rope hoist

Designed specifically for double girder cranes where maximum headroom is desired.

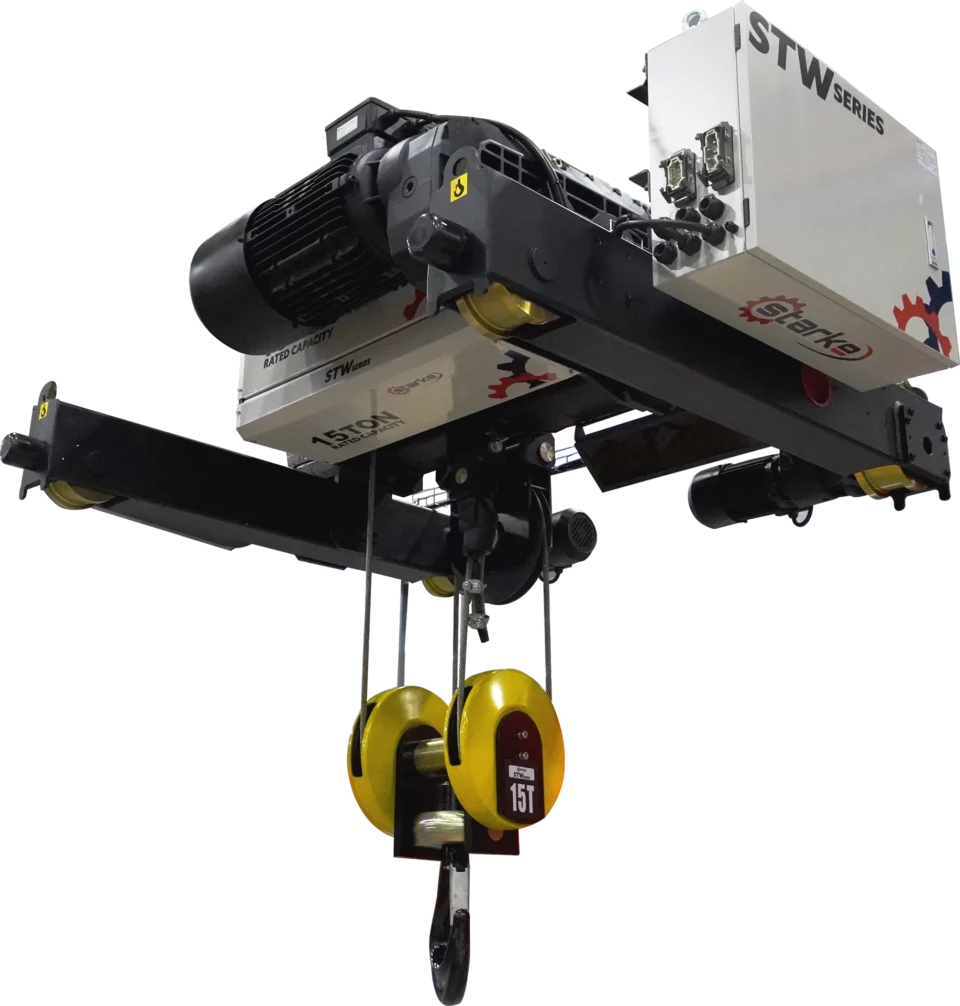

STW Series Wire Rope Hoist 15 Ton

Features

Reasons to choose Starke

You have other options but here's why crane builders choose Starke for their hoist products.

  • Smooth operation

    The Danfoss Variable Frequency Drive regulates the motor's speed and torque, enabling smooth acceleration and deceleration for smoothly and safely lifting and moving loads.

  • Load cell with LED display

    The 3" display lets the operator know at a glance how many pounds the hoist is carrying. This adds safety and provides the ability to calculate load weights for freight companies.

  • Wire rope drum guide

    The rope drum is deeply grooved with stainless steel tube and a high tensile rope guide for optimum line arrangement, a greater safety factor, and a longer life.

  • 2-speed lifting motor

    All hoists feature a heavy duty 2-speed lifting motor designed for long component life and ease of routine service.

  • H4 duty class

    It's tried and tested for all day, everyday operation.

Specs

The details that matter

Everything you need to size it to the job. If the option you need isn't listed, it's probably available, so ask.

Capacity
  • STW0520: 5 Ton
  • STW0720: 7.5 Ton
  • STW1020: 10 Ton
  • STW1520: 15 Ton
  • STW2020: 20 Ton
Lift speed
  • 20/4 FPM
Travel speed
  • 75/20 FPM
Classification

H4 duty rating

The 5 Ton to 15 Ton STW series wire rope hoists meet the ASME H4 duty rating.

H3 duty rating

The 20 Ton STW series wire rope hoist meets the ASME H3 duty rating.

Options

Lift

  • 30'
  • 40'
  • 60'

Place your order

3 steps. That's it. That simple.

It starts with a no-obligation quote and ends with a crane kit (or part) on its way.

  1. Send an RFQ

    No full spec required — send what you've got, even "I need to lift this much, right here," and we'll help you nail down the voltage, I-beam, and capacity.

  2. Review the quote

    Usually back in 3–4 hrs, with real availability and an honest lead time. With Starke, you can turn around and quote your customer with confidence.

  3. Place the order

    Give the go-ahead, schedule delivery, and pay on agreed terms. Most items ship in 3–5 days, and your crane's on its way and on time.
